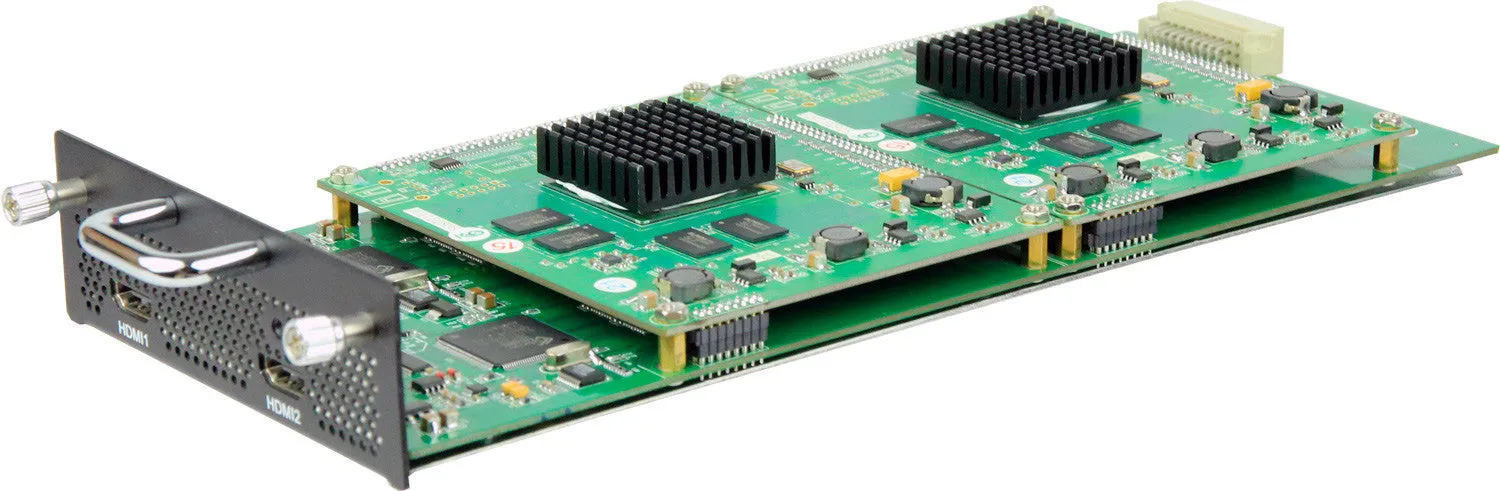

Add on or replacement encoder card for Thor CM4 QAM-IP Chassis Multiplexer system. The CM4 chassis has two encoder bays that can accept any two CM4 dual depth encoder cards by Thor. This card adds two HD or SD channels from two HDMI inputs to the list of availible programs in the QAM-IP managment interface. This card can be added to a QAM-IP unit with an open chassis, or can replace an existing card. QAM-IP systems allow encoding and distribution of multiple channels from different video formats through different cards. Once installed in the CM4 QAM-IP chassis, all encoding parameters are available through the standard web interface. Each channel is independently configured, and can be encoded in either MPEG-2 or H.264. All PID and Electronic Program Guide feilds can be set, and the video and audio bit rates can be adjusted. This card is compatible only with CM4 QAM-IP chassis system, such as the H-4HDMI-QAM-IP. These chassis have dual encoder depth bays.
Features:
- Add two HDMI input channels to a Thor CM4 dual depth QAM-IP Chassis
- High Level hardware encoding in both MPEG-2 or H.264
- Can be combined with other CM2 card types for all video formats
- Encoded Program output from QAM-IP chassis as RF, IP, and ASI
- All PID and Electronic Programing Guide fields are configurable
Specifications:
- Input: 1x HDMI 1.4a with Primary Redundant, Auto Switching
- Supported Resolutions: 720x480i60/59.94, 720x576i50, 1280x720p60/59.94, 1280x720p50, 1920x1080i60/59.94, 1920x1080i50, 1920x1080p60/59.94, 1920x1080p50
- Video Codecs: MPEG-2 HD, H.264 HD
- Audio Codecs: MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC
- Audio Sample Rate: 48 kHz
- Audio Bit Rates: 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Includes:
- Encoder Input card for Thor CM4 Chassis
