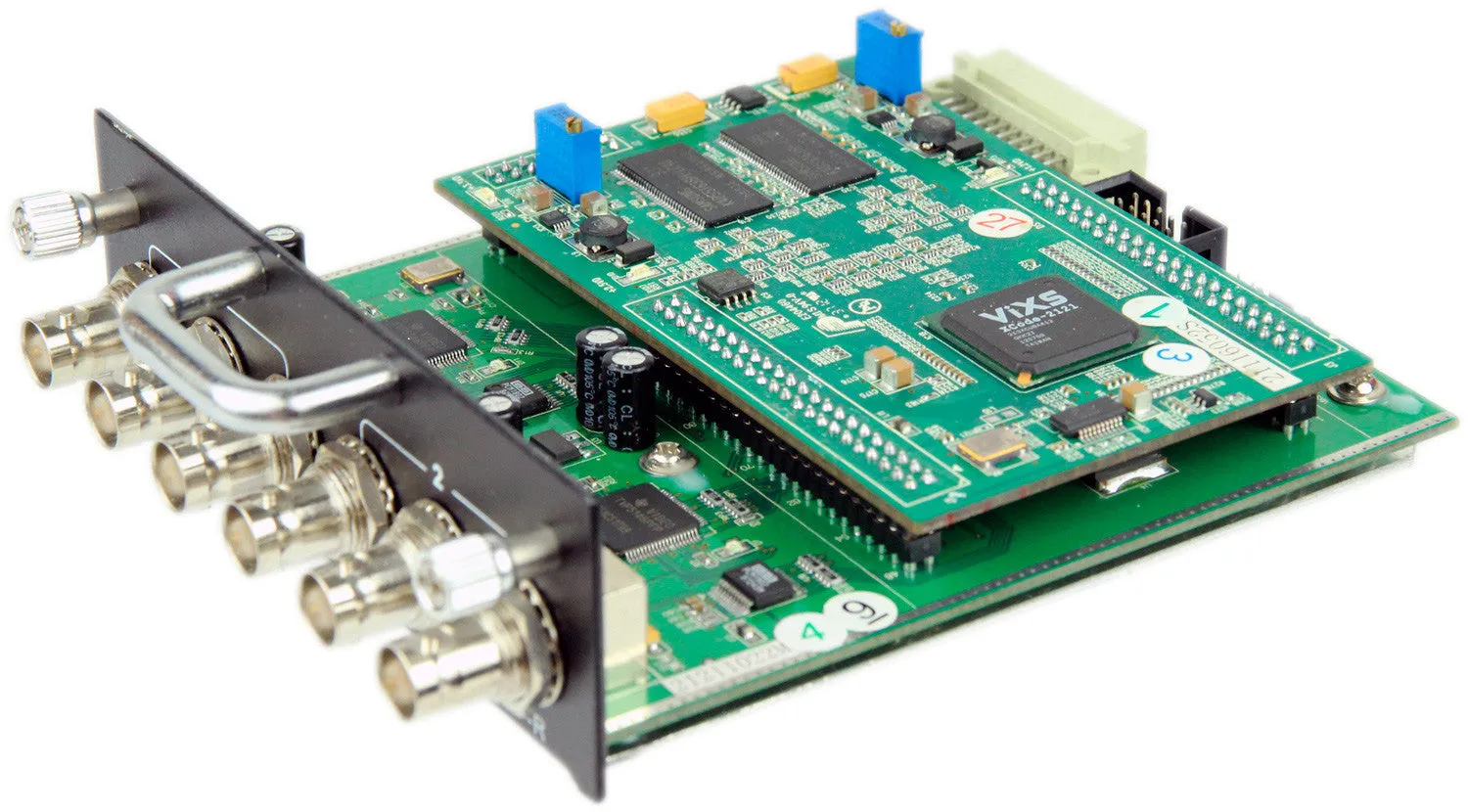

Add on or replacement encoder card for Thor CM2 QAM-IP Chassis Multiplexer system. The CM2 chassis has two encoder bays that can accept any two CM2 depth encoder cards by Thor. This card adds two Standard Definition channels from CVBS Composite inputs to the list of availible programs in the QAM-IP managment interface. This card can be added to a QAM-IP unit with an open chassis, or can replace an existing card. QAM-IP systems allow encoding and distribution of multiple channels from different video formats through different cards. Once installed in the CM2 QAM-IP chassis, all encoding parameters are available through the standard web interface. Each channel is independently configured, and can be encoded in either MPEG-2 or H.264. All PID and Electronic Program Guide feilds can be set, and the video and audio bit rates can be adjusted. This card is not compatible with CM4 QAM-IP chassis, such as the H-4HDMI-QAM-IP. These chassis have dual encoder depth bays.

Features:

• Add two additonal SD channels to any Thor CM2 QAM-IP Chassis
• High Level hardware encoding in both MPEG-2 or H.264
• Can be combined with other CM2 card types for all video formats
• Encoded Program output from QAM-IP chassis as RF, IP, and ASI
• All PID and Electronic Programing Guide fields are configurable

Specifications:

• Input: 2x CVBS - Analog Composite Video / Stereo Analog Audio
• Supported Resolutions 720x480i60/59.94, 720x576i50
• Video Codecs: MPEG-2, H.264
• Audio Codecs: MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC
• Audio Sample Rate: 48 kHz

Includes:

• Encoder Input card for Thor CM2 Chassis
