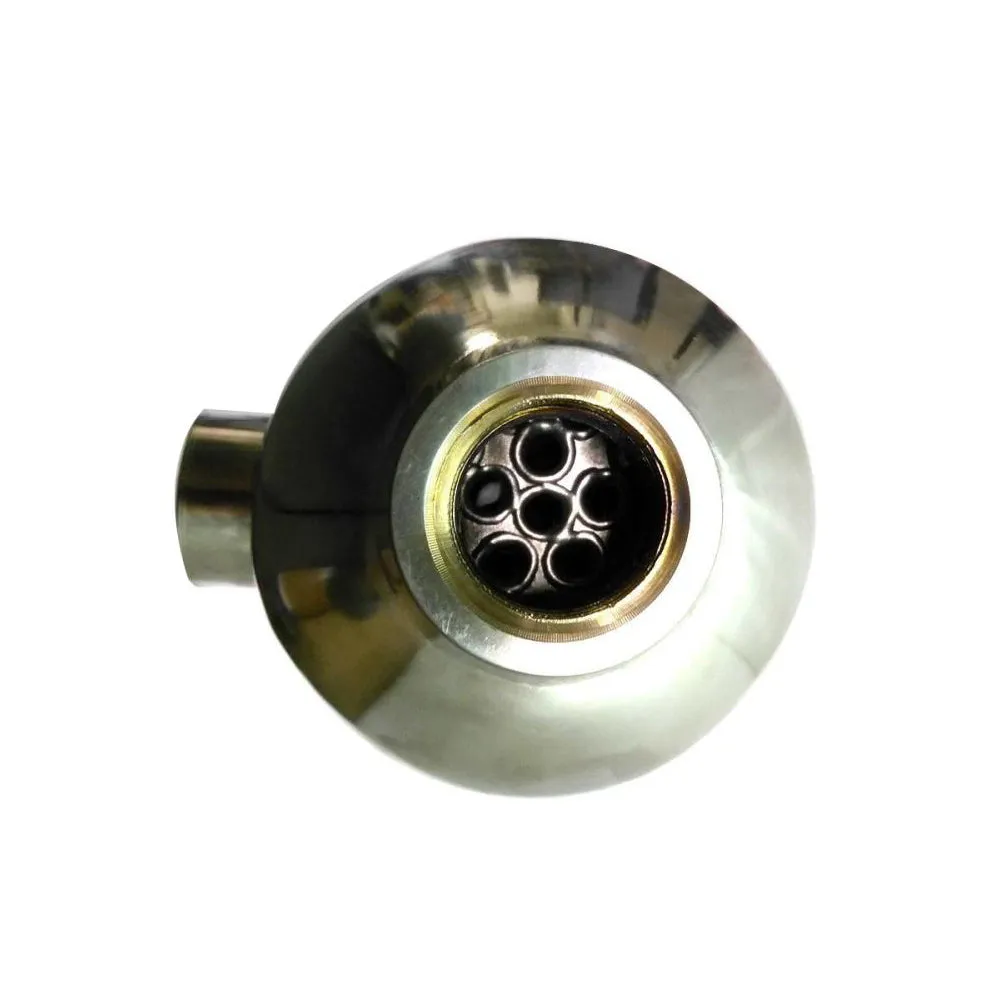

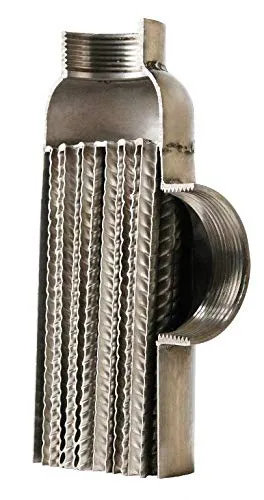

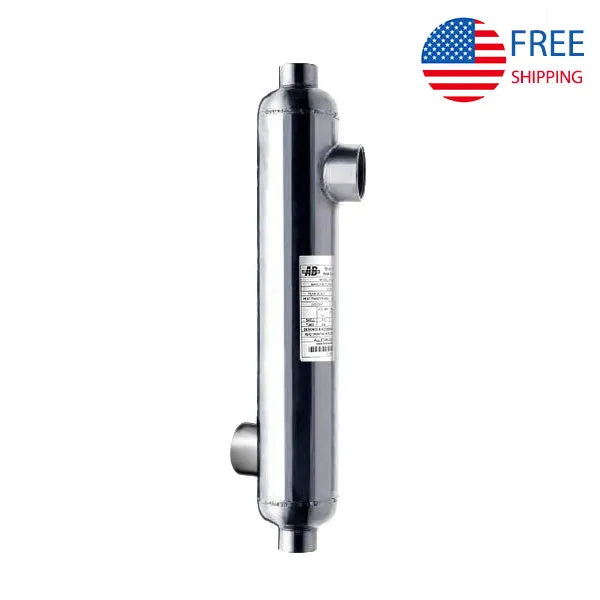

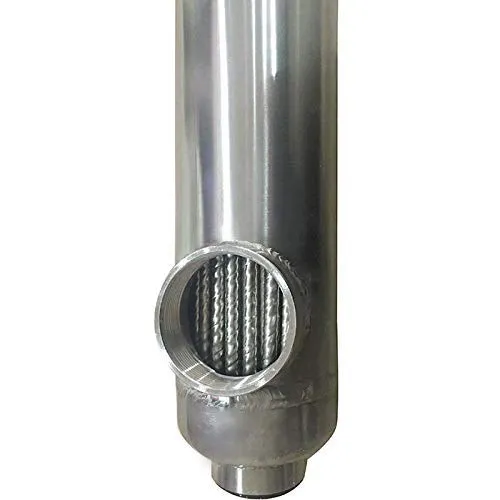

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of stainless steel 316L and has 1 1/2" and 1 1/2" FPT. The capacity of this particular model is 210,000 Btu. This product has a 1 year warranty against manufacturer's defects and is UL listed. We also have this model with same side ports available.
Product Information

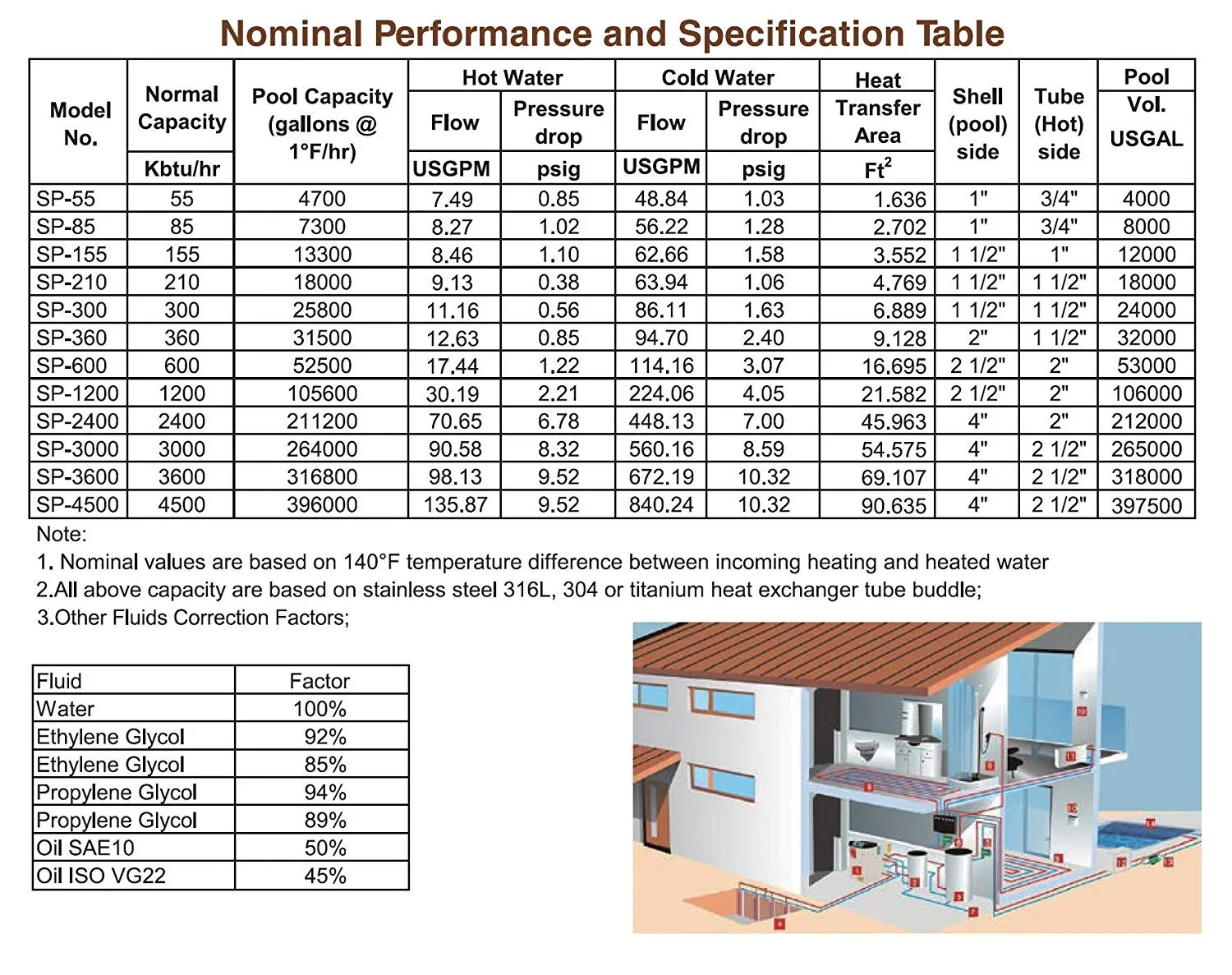

| Model | SP-210K | Capacity | 210,000 Btu | Pool Capacity (Gal. @ 1F/hr) |
17,200 Gal |
| Wattage | 60kW | Heat Transfer Area | 4.769 ft2 | Shell (Pool) / Tube (Hot) Connections |
1 1/2" / 1 1/2" |
| Hot Water Flow Volume |
9.13 GPM | Hot Water Pressure Drop |
0.38psig | Materials | Stainless Steel 316L |
| Cold Water Flow Volume |
63.94 GPM | Cold Water Pressure Drop |
1.06psig | Dimensions | 22.44" x 2.99" |
| Minimum Temperature | -19F | Maximum Temperature | 406F | Weight | 6.9lb |
| Design Pressure | 190psi | Test Pressure | 285psi |
If you have any special requirements, please fill the
FAQ and Support

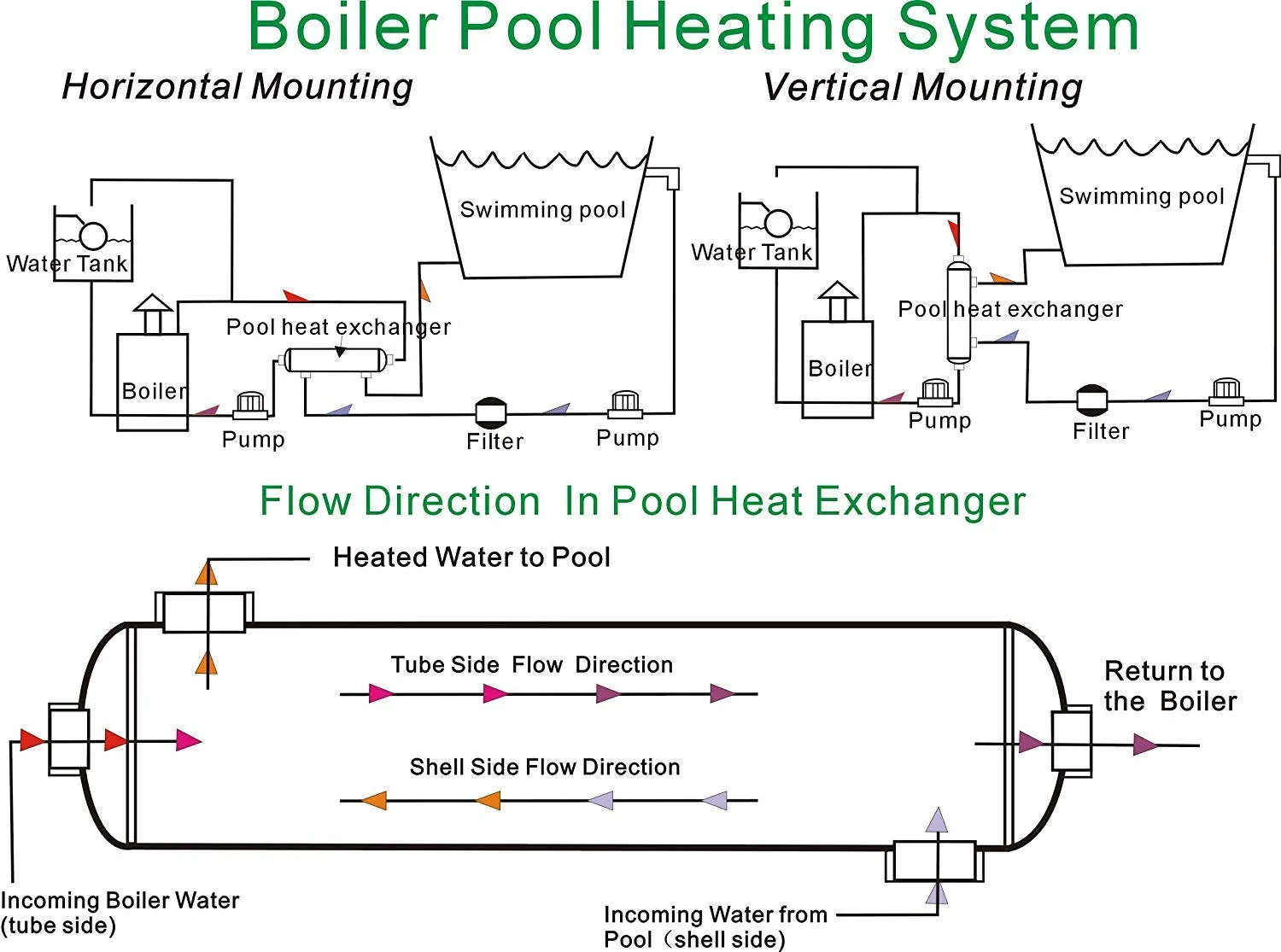

Tips for installation:
Vibrations can cause damage to the heat exchanger. Attaching the heat exchanger to a wall, ceiling, or floor by using wall brackets will steady it against vibrations.
