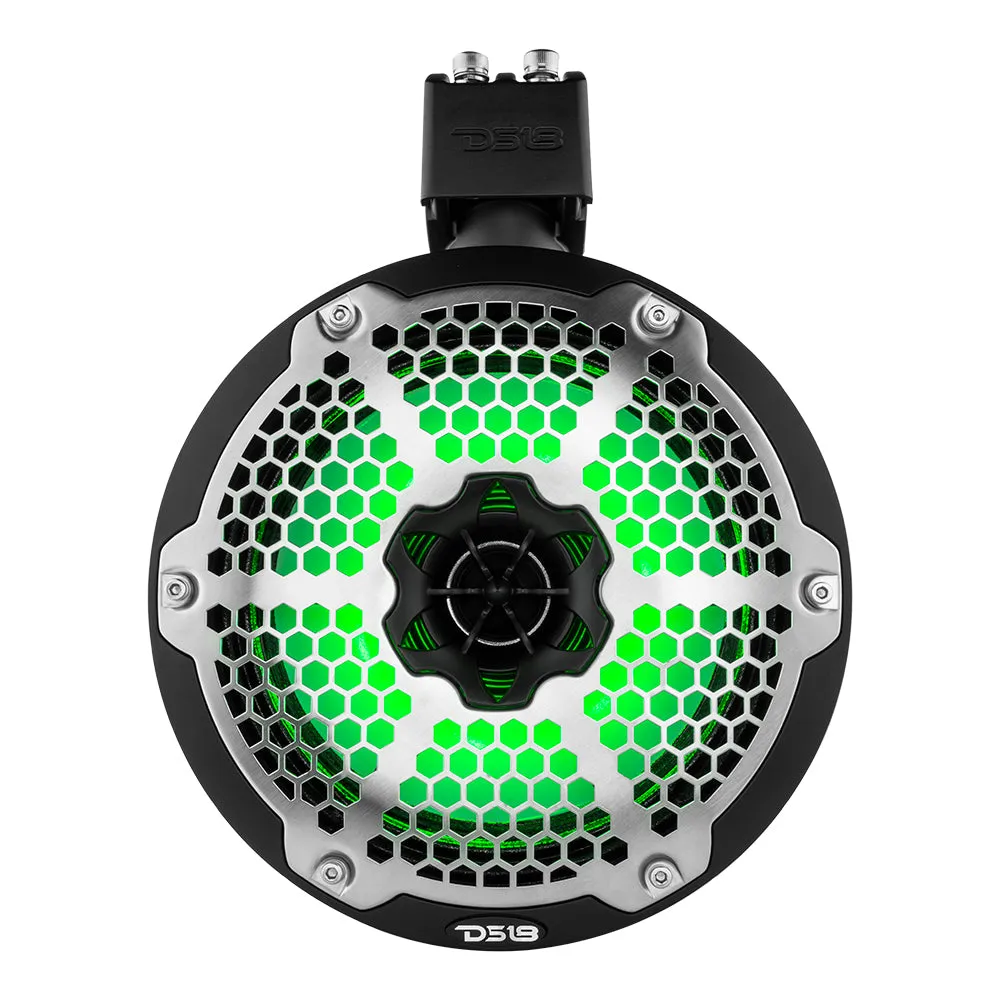

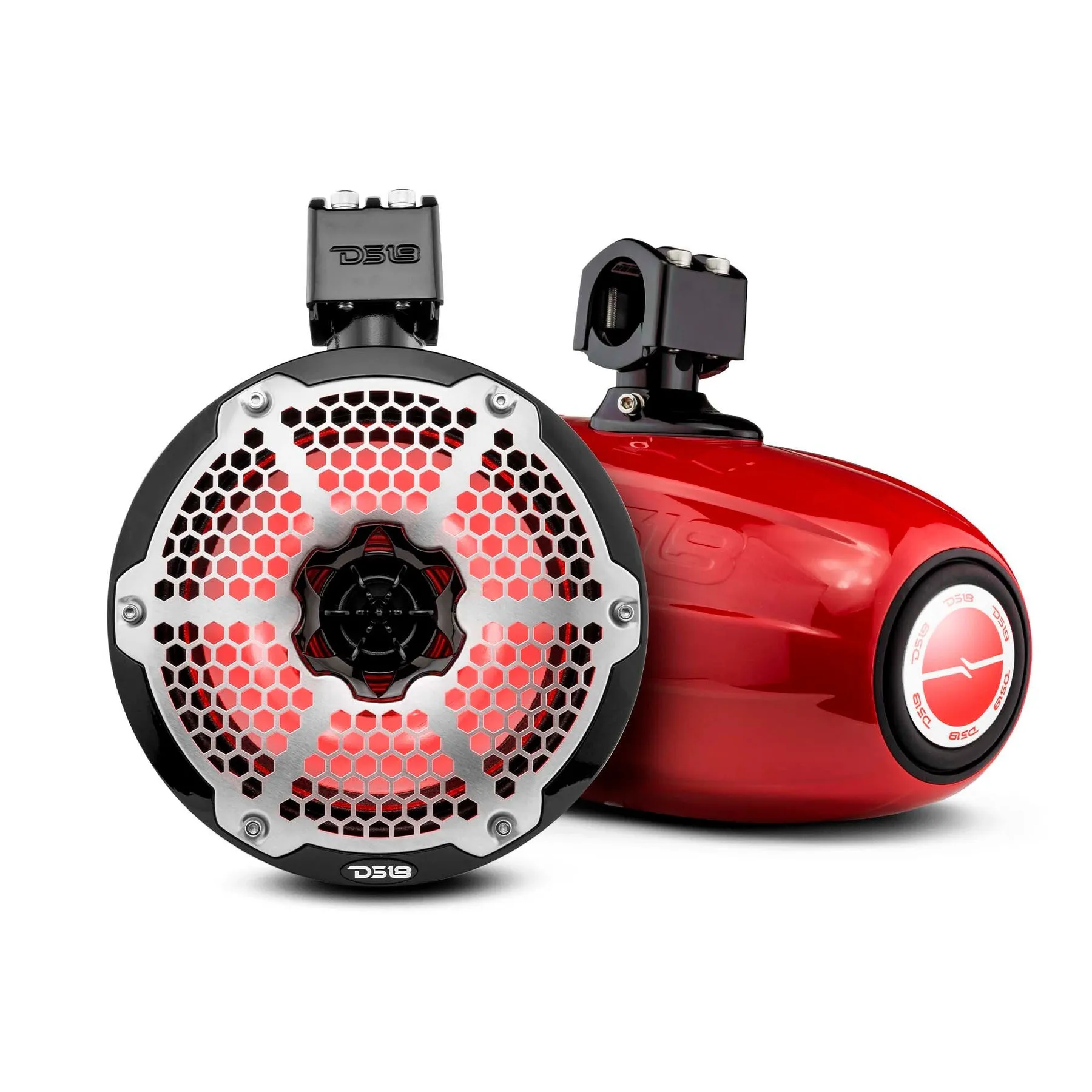

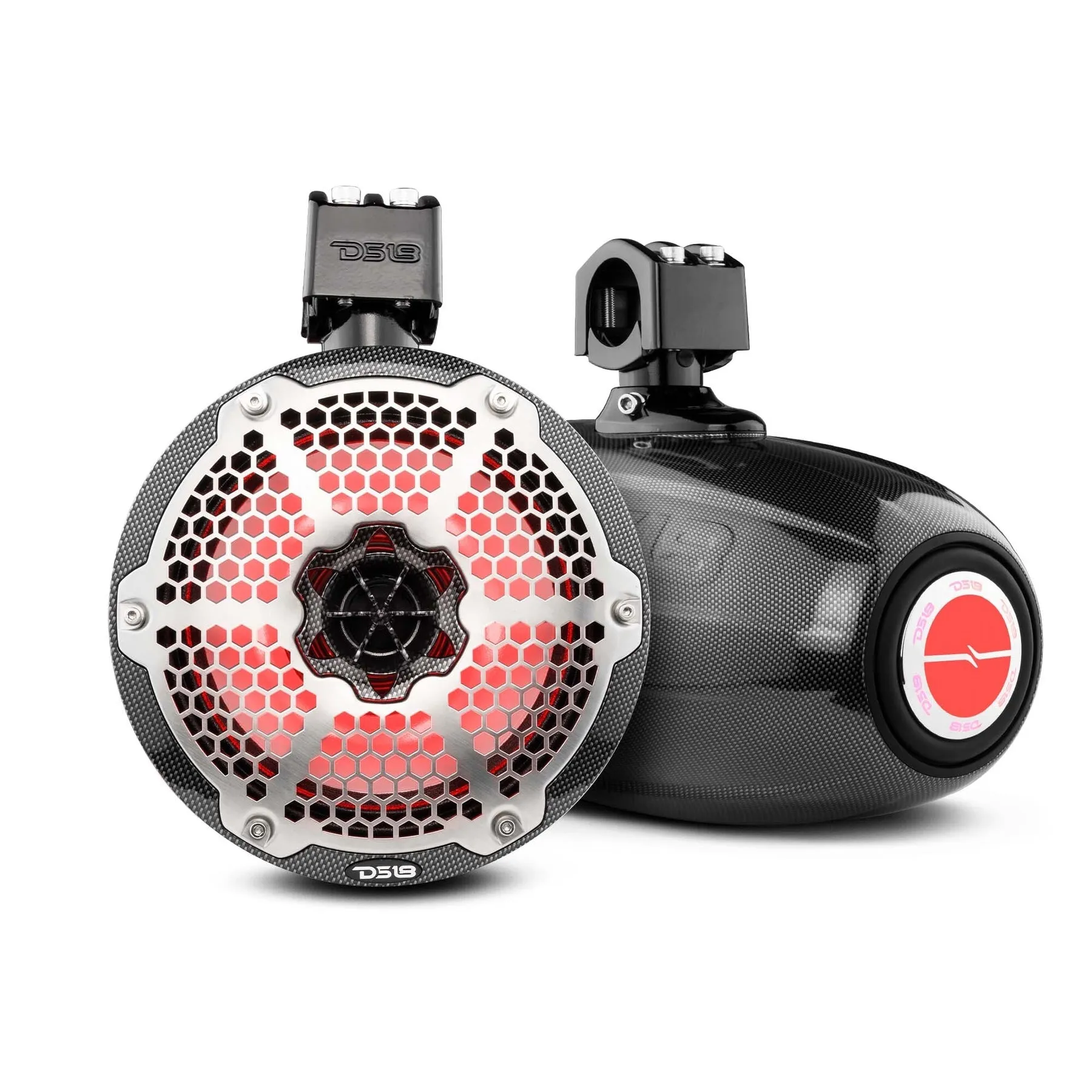

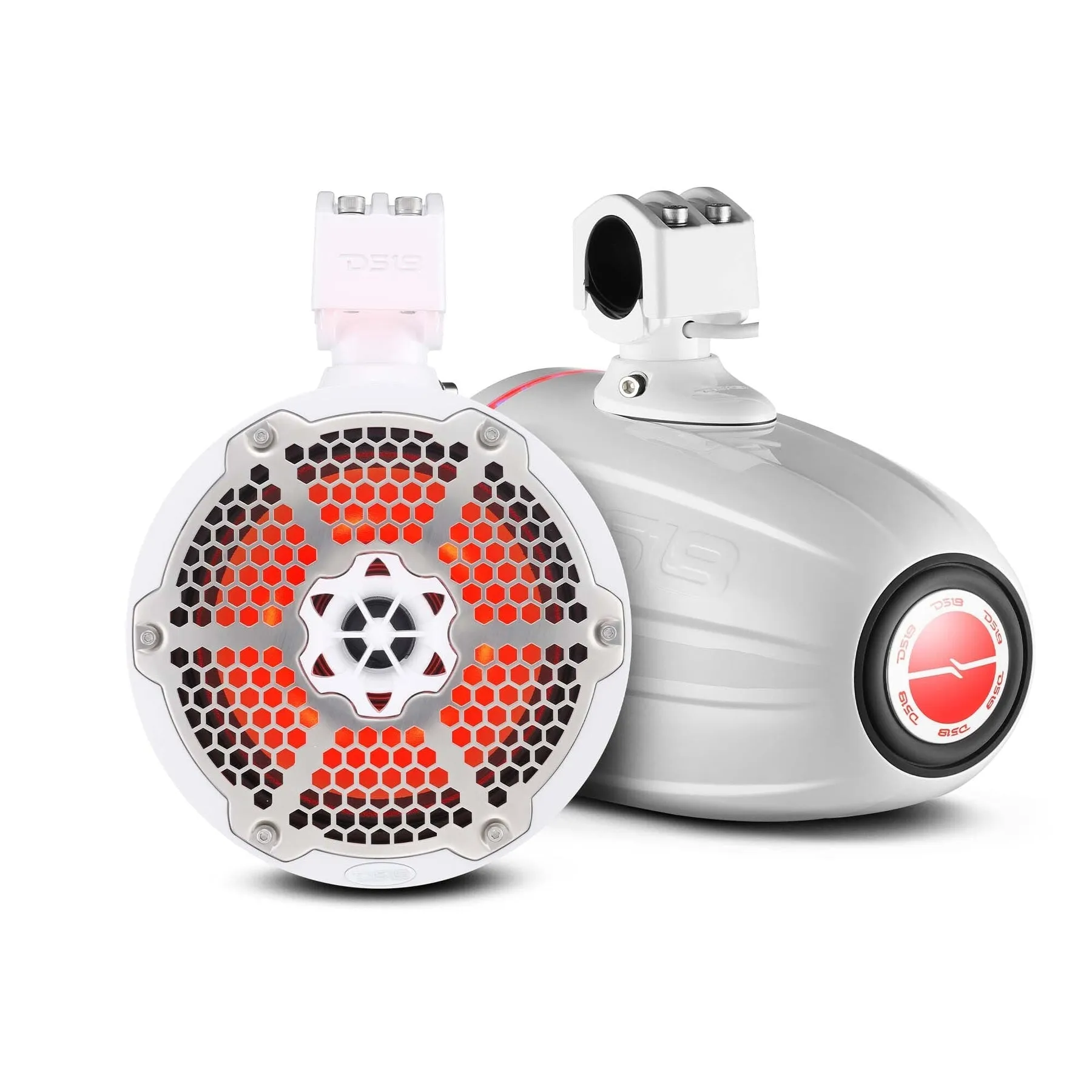

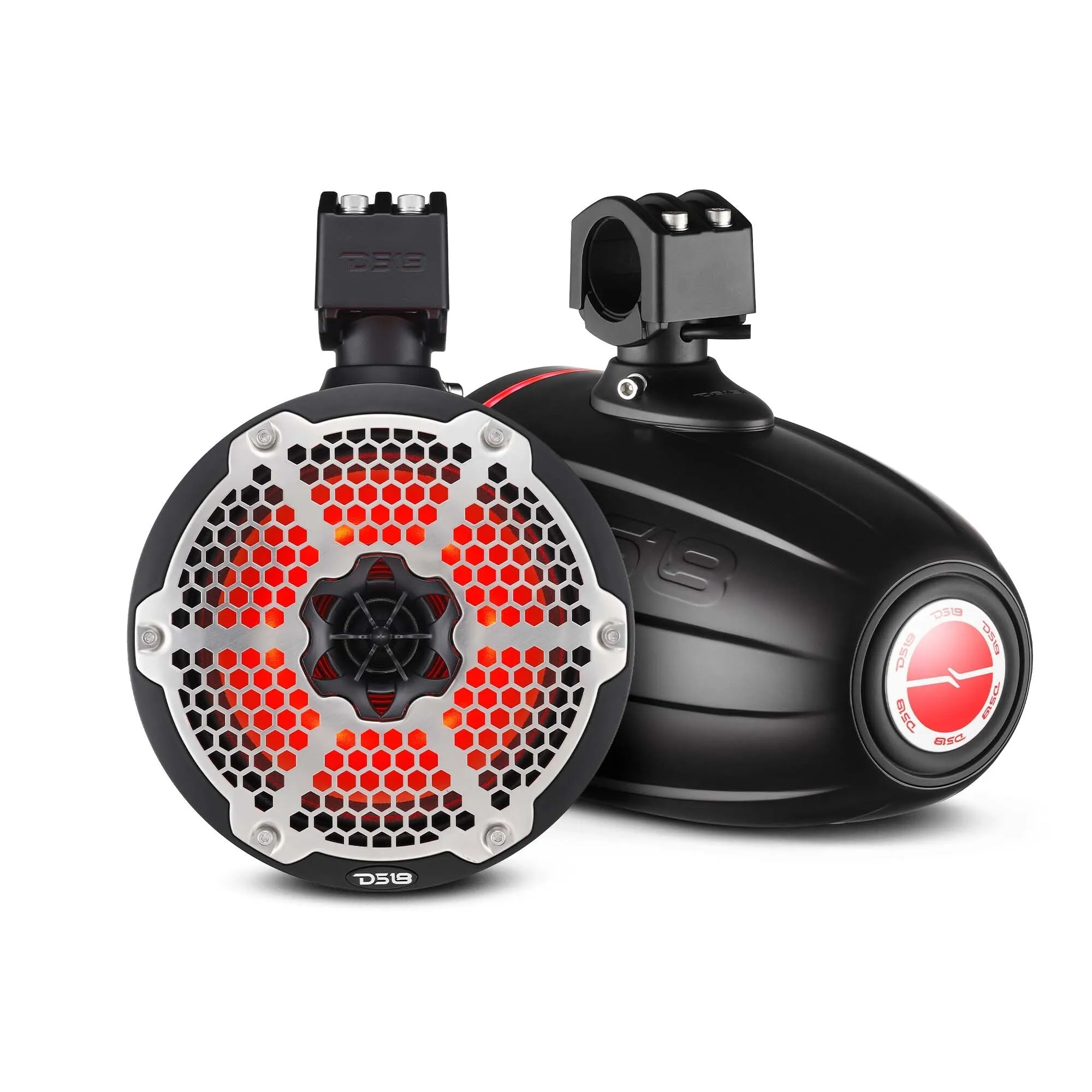

DS18 HYDRO NXL-X8TPNEO 8" Neodymium Marine and Powersports Towers with Built-in Passive Radiator, 1" Driver and LED RGB Lights 180 Watts Rms -Red
The newly redesigned NXL-8TPNEO tower speakers are louder and stronger than ever! The pod contains the same speaker and driver combo that everyone loves from the previous generation but now the clamping system has been reinforced for stronger grip and protection all around. Also to improve loudness and sound quality, we have added a passive woofer radiator for even more bass response. RGB lighting is also included so you can match colors to your mood or color scheme.
Highlights
- Neodymium Hydro 8 inch speaker with built compression driver to to blast the competition's audio away.

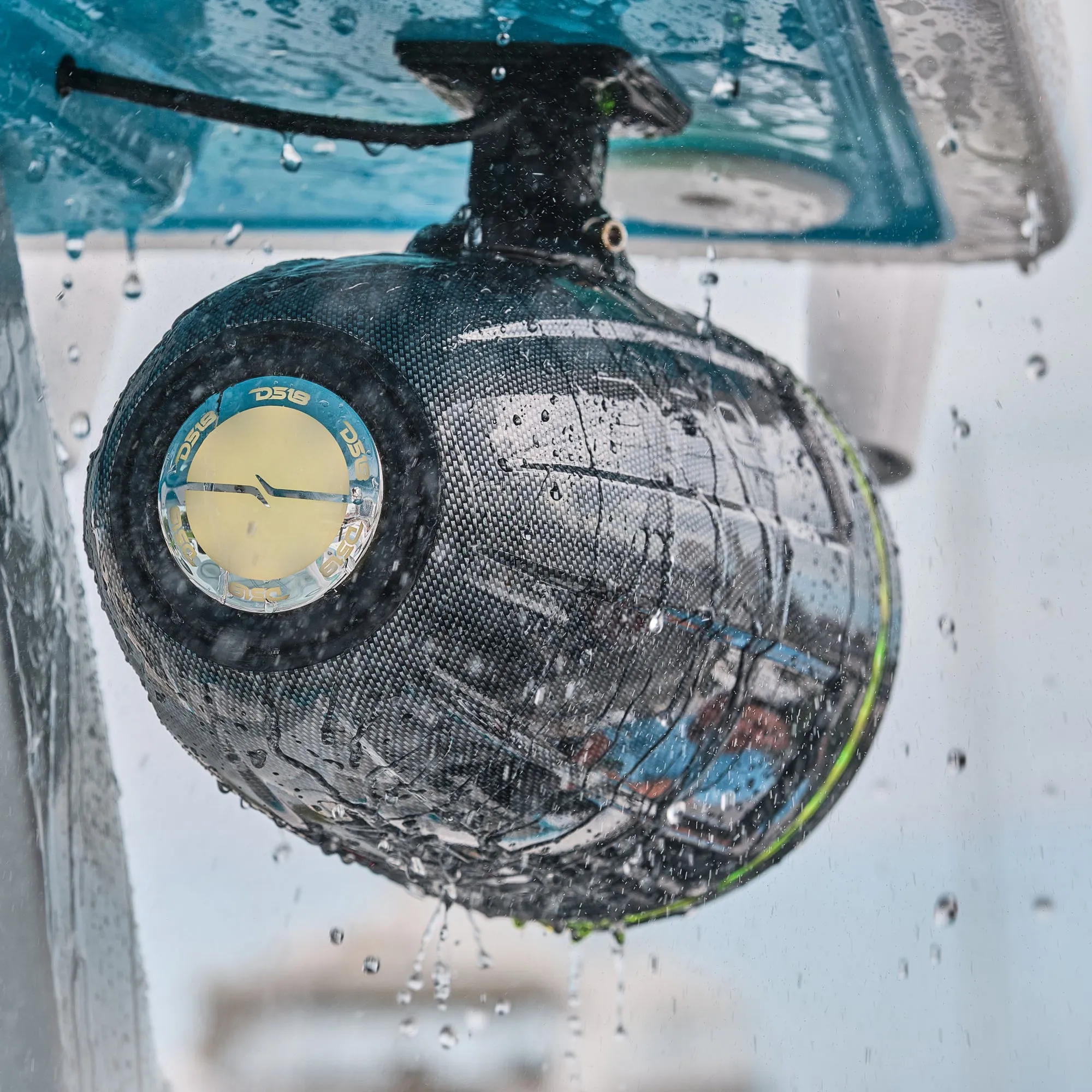

- Stronger redesigned clamping system and base to ensure the pods durability in rough waters or trails.

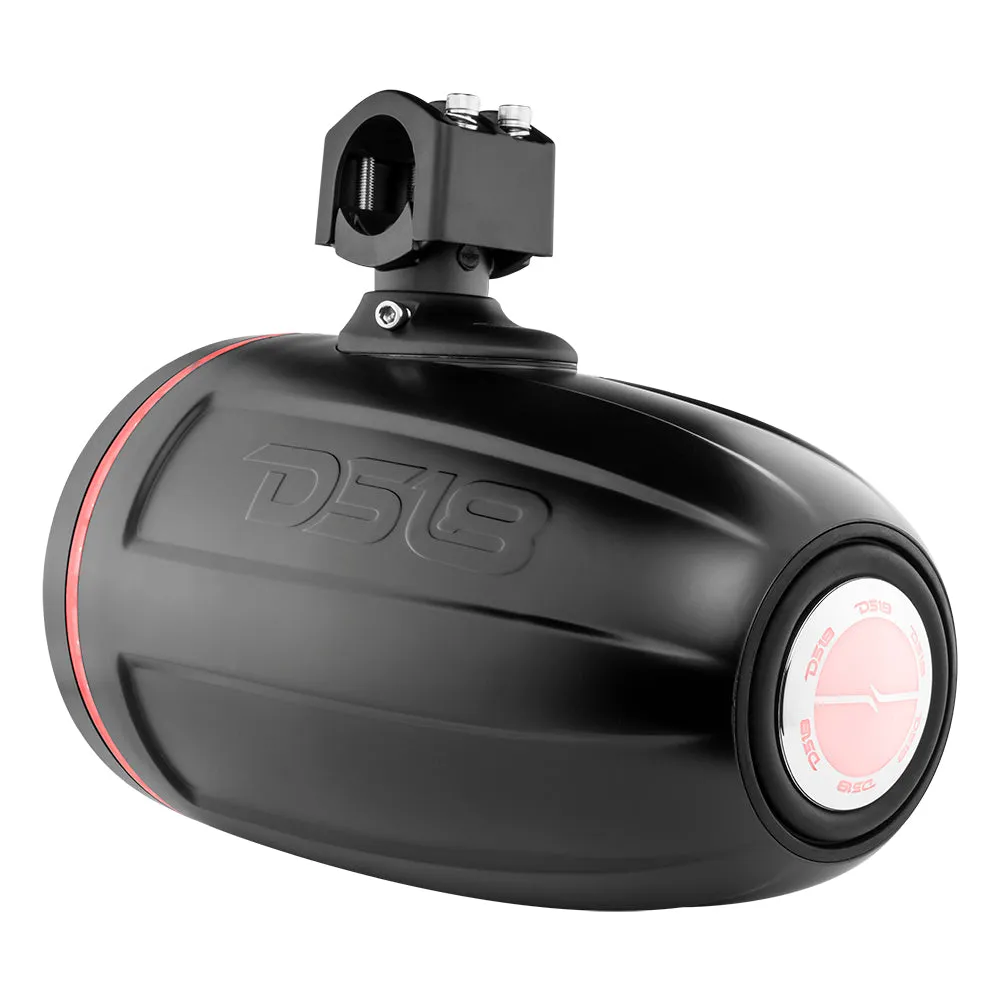

- Added passive woofer radiator for added bass response along with amazing looks.

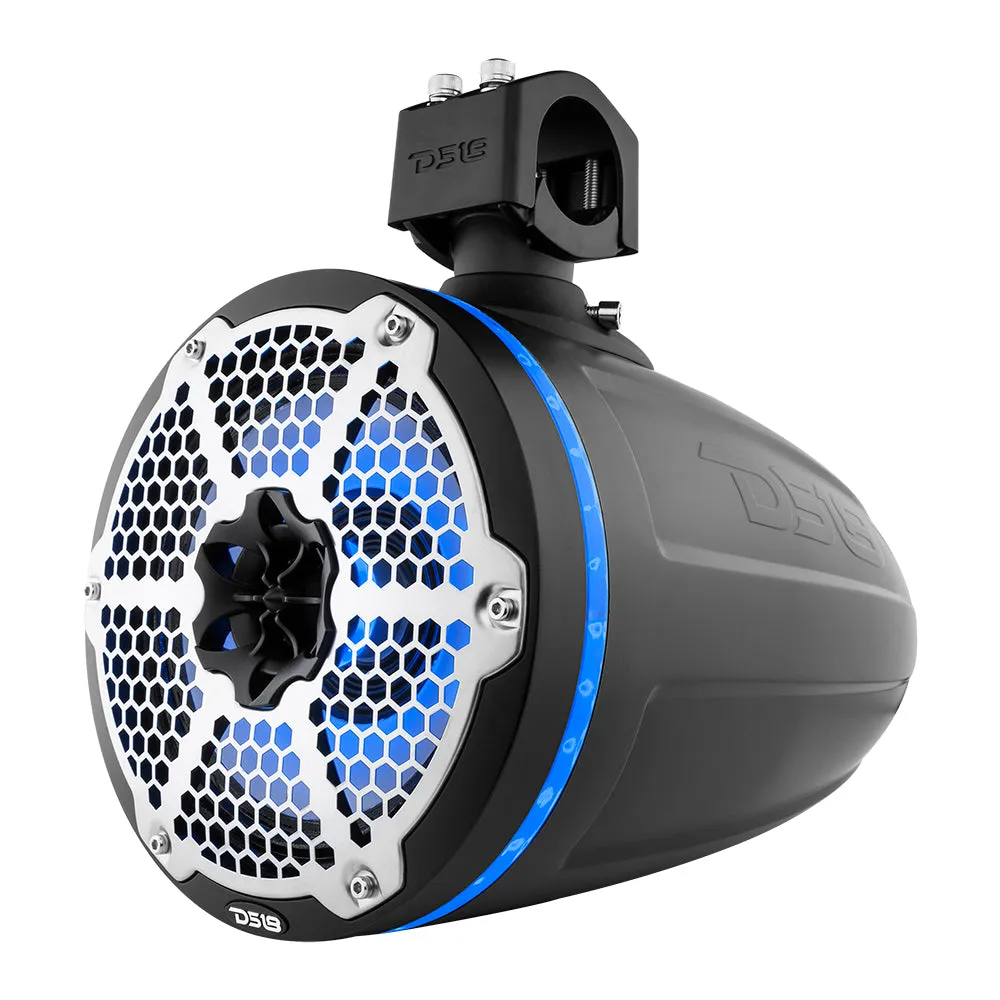

- RGB LED system designed throughout the pod so you see lighting which includes the speaker, speaker ring, and light on the passive woofer radiator.
Technical Details
Ecl297zl03000101s6hejmfzryE
| General Specifications | |
| Nominal Diameter | 8 |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 180W |
| MAX Power Handling | 550W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 60Hz - 21Khz |
| Body / Features | |
| Enclosure Material | Injection PC ABS |
| Marine Grade Type | IP65 UV Stable |
| RGB LED | Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker |
| Grill Type | ABS 316 Stainless Metal Mesh |
| Pair | Yes |

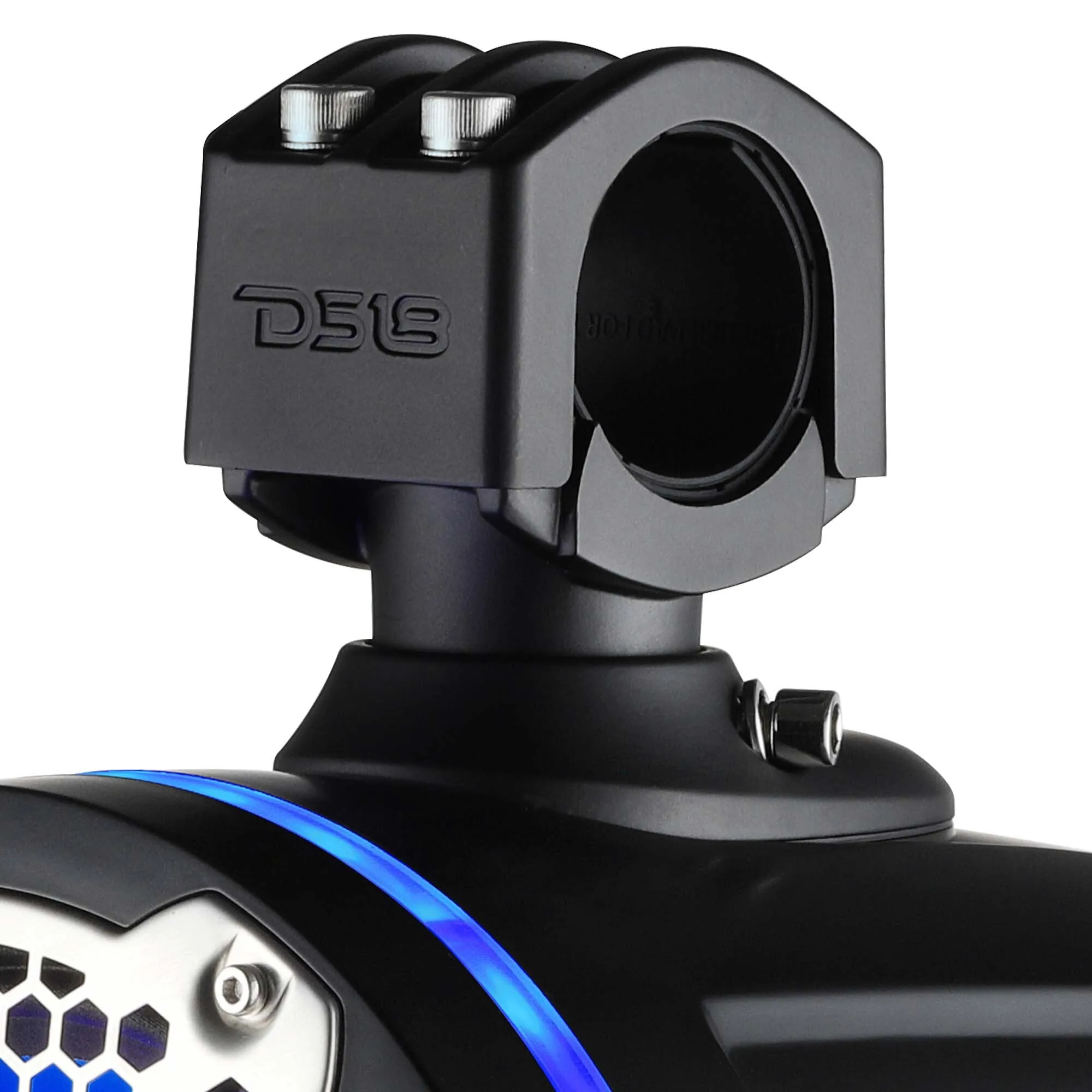

| Clamps | Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue) |
| Front Logo | Yes, Can be Rotated For Correct Angle Display |
| Woofer Specifications | |
| Voice Coil Diameter | 2" |
| Cone Material | Waterproof Compress Paper Carbon Fiber |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | 4" With LED RGB Light |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Crossover | 12dB with Over Power Protection |
| Thiele & Small Parameters | |
| Equivalent Volume | Vas - 17.5L |
| Excursion (one way) | Xmax - 3mm |
| Free Air Resonance | Fs- 62Hz |
| Total Factor | Qts - 0.756 |
| Speaker Measurements | |
| Overall Diameter | 8.59" / 218.1mm |
| Overall Depth | 13.89" / 352.9mm |
| Overall Height | 12.37" / 314.3mm |
