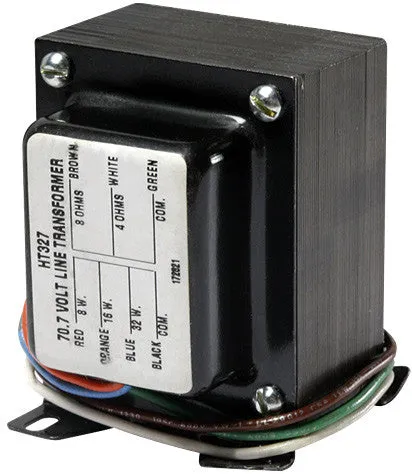

Unit is constructed of audio grade laminations and offers primary taps at 8, 16 and 32 watts with secondary impedance of 4 and 8 ohms.
Insertion loss does not exceed 0.6dB and the unit operates within a frequency range of 1dB from 30 Hz to 15 kHz.
The transformer is designed for external mounting to surfaces other than the loudspeaker.
Tech Data
- Constructed with audio grade laminations
- Frequency response is /- 1 dB from 30Hz to 15KHz
- High power handling unit
- High quality matching transformer with only 0.6dB insertion loss
- Primary taps of 8, 16, & 32 watts
- Secondary outputs offer both 4 & 8 ohm impedance
